How to configure a domain name with Proxy Manager

Estimated time: 15 minutes (+ DNS propagation time)
Difficulty: Intermediate ⭐⭐
Availability: Python, Node.js, Minecraft

---

📋 Introduction

The Proxy Manager allows you to associate your own domain name with a web application hosted on your OuiHeberg server, with a free and automatic SSL/HTTPS certificate.

Concrete example:

• Your Node.js application runs on port 3000
• Thanks to the Proxy Manager, it becomes accessible via https://monsite.com

Use cases

Server type	Usage
🟢 Node.js	Website, REST API, dashboard, Discord bot with web panel
🐍 Python	Flask/Django application, FastAPI API, dashboard
🎮 Minecraft	Dynmap, BlueMap, Plan, plugin web panel

---

🔧 Prerequisites

Before you start, you must have:

Prerequisite	Description
🌐 A domain name	That you own (e.g., monsite.com, monserveur.fr)
🔑 Access to the DNS zone	At your registrar (OuiHeberg, OVH, Cloudflare, Gandi, Ionos, etc.)
✅ A functional application	Listening on a port of your server
🚀 Server started	Your server must be online

⚠️ Important: You must own your own domain name. OuiHeberg does not provide a domain with the Proxy Manager.

---

🚀 Configuration in 4 Steps

Step 1: Get the Proxy IP

1. Log in to OuiPanel
2. Select your server

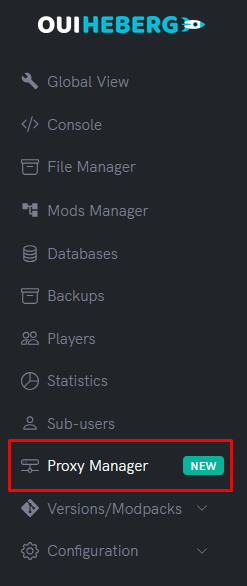

3. In the side menu, click on Proxy Manager

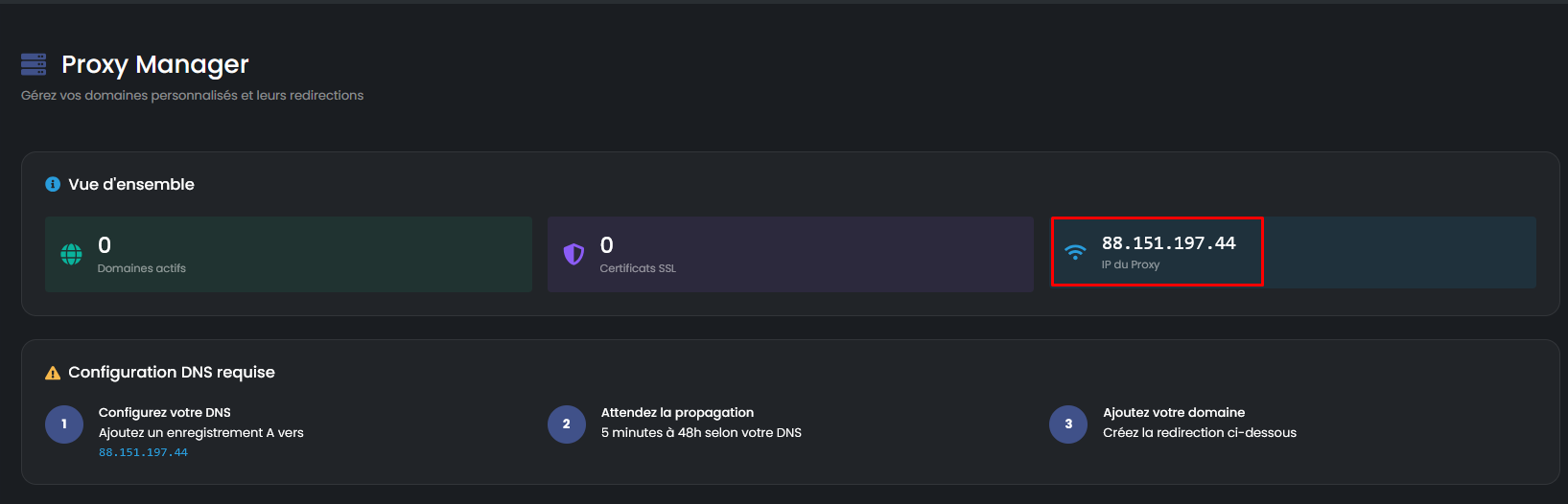

4. At the top of the page, in the Overview section, locate the Proxy IP

Information	Description
Active domains	Number of domains already configured
SSL certificates	Number of domains with HTTPS enabled
Proxy IP	The IP address to use for your DNS

📝 Take note of this IP (e.g., 88.151.xxx.xxx), you will need it for the next step.

---

Step 2: Configure DNS at your Registrar

You must create an A Type DNS record pointing your domain to the Proxy IP.

Configuration to be done

Field	Value
Type	A
Name / Host	@ (main domain) or subdomain (www, app, panel, etc.)
Value / Target	The Proxy IP copied in step 1
TTL	3600 (or Auto)

Examples according to the desired domain

You want to use	Host/Name to put
monsite.com	@ or leave blank
www.monsite.com	www
app.monsite.com	app
panel.monsite.com	panel
api.monsite.com	api

---

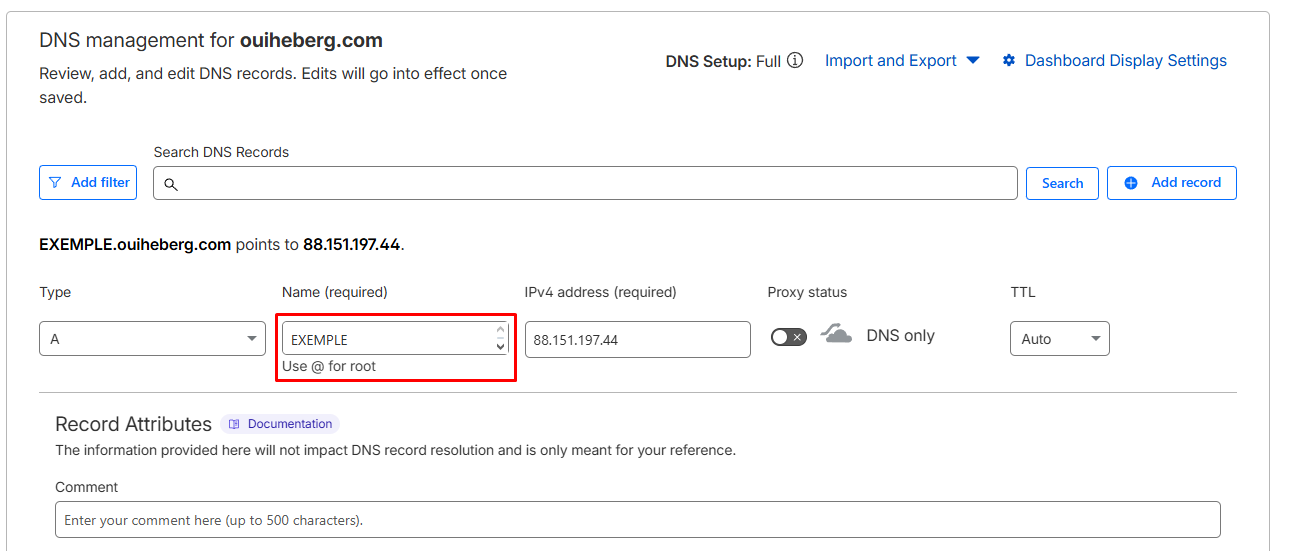

🟠 At Cloudflare

1. Log in to your dashboard
2. Select your domain
3. Go to DNS → Records
4. Click on Add record
5. Fill in:
   • Type: A
   • Name: @ for the main domain or the desired subdomain
   • IPv4 address: The Proxy IP
   • Proxy status: ⚠️ Disable the proxy (gray icon, "DNS only")
   • TTL: Auto
6. Click on Save

⚠️ IMPORTANT Cloudflare: You must disable the Cloudflare proxy (orange icon → gray). Otherwise, the SSL certificate cannot be generated.

---

Step 3: Check DNS Propagation

After configuring your DNS, you must wait for propagation. This delay varies depending on the registrars:

Registrar	Average time
Cloudflare	1 to 5 minutes
OuiHeberg	1 to 5 minutes
Gandi	30 minutes to 2 hours
Others	Up to 24-48 hours

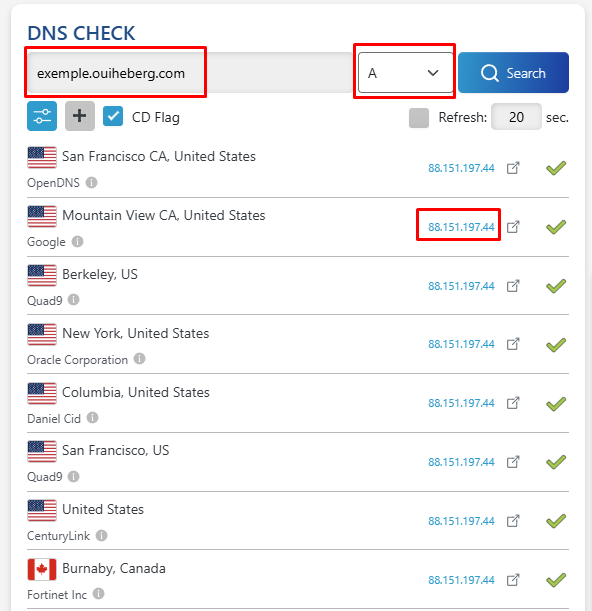

Check online

Use these free tools to check if your DNS has propagated:

Tool	Link
DNS Checker	dnschecker.org
What's My DNS	whatsmydns.net
MX Toolbox	mxtoolbox.com/DNSLookup.aspx

1. Enter your domain (e.g., monsite.com)
2. Select the A type
3. Verify that the displayed IP matches the OuiPanel Proxy IP

Check via OuiPanel

OuiPanel includes a verification tool:

1. In the Proxy Manager, click on Add
2. Enter your domain name
3. Click on Check DNS
4. The system indicates:
   • ✅ DNS configured correctly → You can continue
   • ❌ DNS not configured → Wait or correct the configuration

---

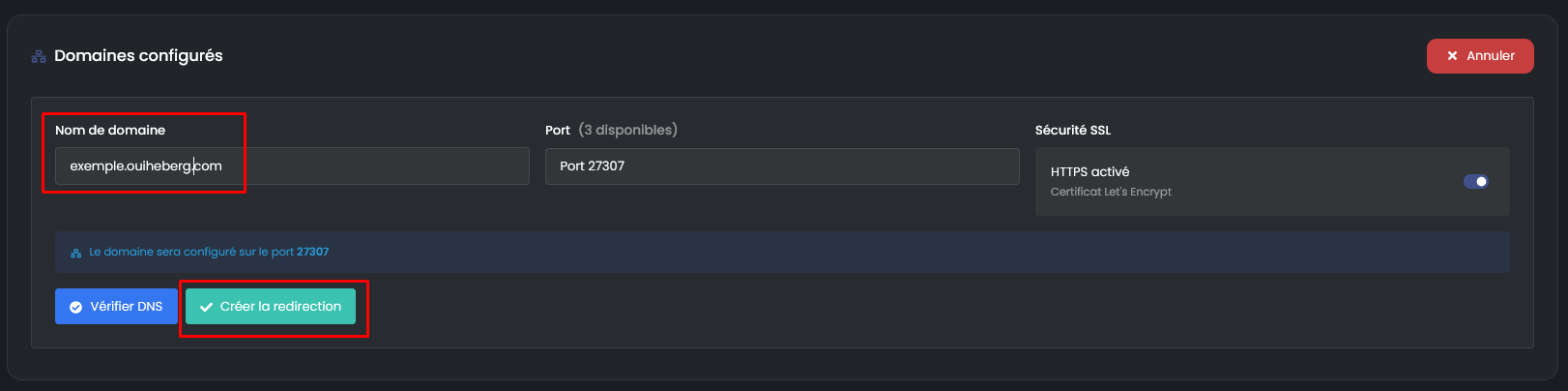

Step 4: Add the Domain in OuiPanel

Once the DNS has propagated:

1. In the Proxy Manager, click on Add

2. Fill out the form:

Field	Description	Example
Domain name	Your complete domain	monsite.com or app.monsite.com
Port	Your application's port	3000, 8080, 8123...
SSL Security	Enable HTTPS (recommended)	✅ Enabled

3. Click on Create redirection

4. ✅ Your domain is configured! Go to https://monsite.com

---

⚙️ Manage your Domains

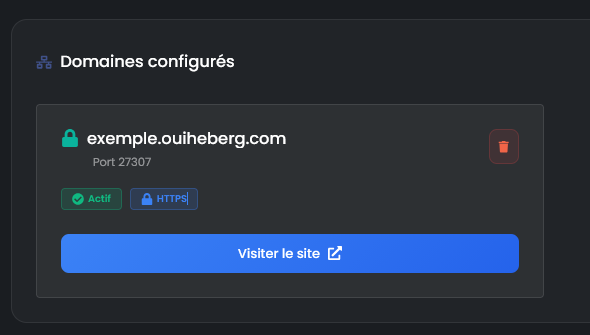

Dashboard

Your configured domains appear as cards with:

Item	Description
🔒 Green padlock	HTTPS enabled
🔓 Red padlock	HTTP only
Port	Redirection port
SSL Badge	HTTPS (blue) or HTTP (orange)
Visit site	Opens the domain in a new tab

---

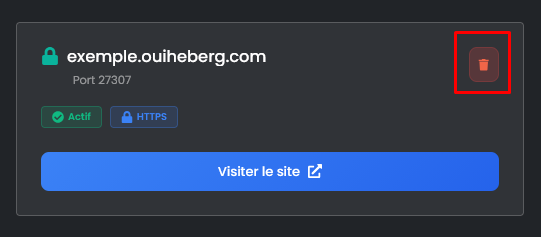

Delete a domain

1. On the domain card, click on the trash icon (red)
2. Confirm deletion
3. The domain and its SSL certificate are deleted


💡 You can always reconfigure the domain later.

---

🔧 Troubleshooting

"DNS not configured" even though I did the configuration

❌ Cause	✅ Solution
Propagation in progress	Wait up to 48 hours according to the registrar
Incorrect IP	Check that the IP matches the Proxy Manager's
Cloudflare Proxy enabled	Disable it (mandatory gray icon)
CNAME type instead of A	Delete and recreate as Type A

---

Site not loading (502 / 504 error)

❌ Cause	✅ Solution
Application not started	Start your server in OuiPanel
Incorrect port	Check that the port matches your application
Crashed application	Check the Console for errors

---

Application works locally but not via the domain

Your application must listen on all interfaces (0.0.0.0):

Node.js:

// ❌ Wrong
app.listen(3000, 'localhost');
app.listen(3000, '127.0.0.1');

// ✅ Correct
app.listen(3000, '0.0.0.0');

Python (Flask):

# ❌ Wrong
app.run(host='127.0.0.1', port=3000)

# ✅ Correct
app.run(host='0.0.0.0', port=3000)

---

SSL certificate error

❌ Cause	✅ Solution
Certificate being generated	Wait a few minutes
Cloudflare Proxy enabled	Disable it (mandatory)
Incorrect DNS	Check that the domain points to the correct IP

---

"Domain already in use"

This domain is already configured on another OuiPanel server.

Solutions:

• If it's your old server → Remove the domain from the old server
• If the old server is deleted → Contact OuiHeberg support

---

❓ FAQ

Can I use multiple domains?

Yes! You can add as many domains as needed. Each domain can point to a different port.

Is SSL free?

Yes! The SSL certificate is automatically generated via Let's Encrypt and renewed automatically.

Do I need to configure HTTPS in my application?

No. The Proxy Manager handles SSL termination. Your application continues to work in HTTP, the proxy takes care of encryption.

Can I use a subdomain?

Yes! Simply create a Type A DNS record for each desired subdomain.

---

📝 Summary

1. Get the Proxy IP in OuiPanel → Proxy Manager
2. At your registrar, create a DNS record:
   • Type: A
   • Name: @ (or subdomain)
   • Value: Proxy IP
3. Wait for DNS propagation (5 minutes to 48 hours)
4. Check on dnschecker.org that the IP is correct
5. In OuiPanel → Proxy Manager → Add
   • Domain: monsite.com
   • Port: 3000
   • SSL: Enabled
6. Done! → https://monsite.com
